Q.U.A.S.A.R. - Quantum Automated System for Advanced Recycling

The future of recycling systems is at an exciting crossroads, where cutting-edge technology intersects with environmental sustainability. In this pioneering project, we at Qausar delve into the realm of quantum convolutional neural networks to revolutionize recycling efficiency and accuracy, surpassing the capabilities of traditional convolutional neural networks. Our research centers on the development of two distinct models: a classical CNN and a quantum CNN, aiming to determine whether QCNNs can pave the way for a more sustainable recycling paradigm.

Our machine learning algorithm is built upon the Quantum Convolution Neural Network. Unlike the conventional Convolutional Neural Network, which employs classical convolution techniques, our approach harnesses the advantages of quantum computing to extend the concept of classical convolution. The process for achieving quantum convolution unfolds as follows:

1. We begin by embedding a small image region (typically a 2 by 2 square in our implementation) into a quantum circuit. This is accomplished through parametrized rotations applied to qubits initialized in the ground state.
2. Subsequently, we apply a layer of a random unitary circuit, denoted as U, to the qubits obtained in the previous step.
3. Following this, we measure the quantum system, resulting in a collection of classical expectation values. Each of these expectation values is then mapped to a distinct channel within a single output pixel.
4. We repeat this procedure across all regions of the image until the entire image has been scanned. The result is an output object structured as a multi-channel image.
5. Finally, classical neural network layers are applied to the processed image.

Setting Up

The code, model can be downloaded from the(releases) tab.

Additionally, the PyPi package can be installed to access Quasar.py created for easy access by our team. The documentation is in progress, so for now, you can use the code as a reference.

pip install quantum-automated-system-for-advanced-recycling


Python Example:

from Quasar import Quasar
import numpy as np

# Load data sets for training and testing
# Datasets can be accessed on releases page
train_dataset = np.load("./recycled_32_train.npz")
test_dataset = np.load("./recycled_32_test.npz")

# Create Quasar instance
model = Quasar(train_dataset, test_dataset)

# Preprocess images. It will save the pre-processed images to the directory specified.
model.preprocess("./quanvolution/")

# Load pre-processed images from numpy arrays
# q_train_images and q_test_images are default names
q_train_images = np.load("./quanvolution/q_train_images.npy")
q_test_images = np.load("./quanvolution/q_test_images.npy")

# Load the pre-processed images in the model
model.load(q_train_images, q_test_images)

# Train the model
model.train()

# Evaluate the model
model.evaluate()

# Print the prediction of the model on a single image
# It will output the index of the class with the highest probability and hardcoded name.
# In format {'name': prediction_result}
print(model.predict("./image.jpg"))
# {'Box': #}


Model Performance

---

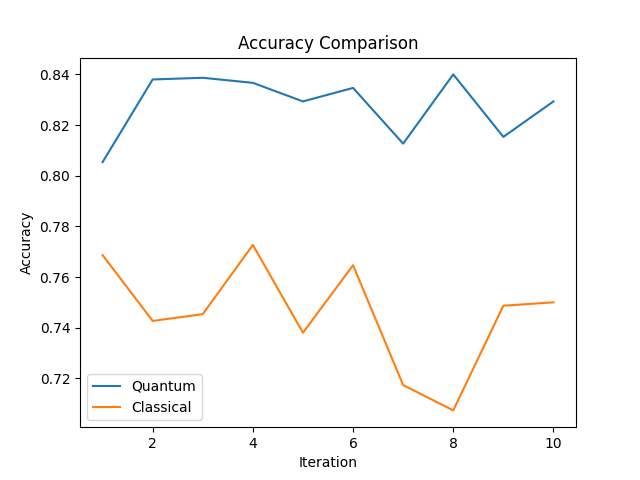

Accuracy Plot

The average accuracy for the classical model was 75%, whereas the accuracy for the quantum/hydrid model was 83%.

Input Size Plot

The average input size for the classical model was 0.65 Mb, whereas the input size for the quantum/hybrid model was 0.78 Mb.

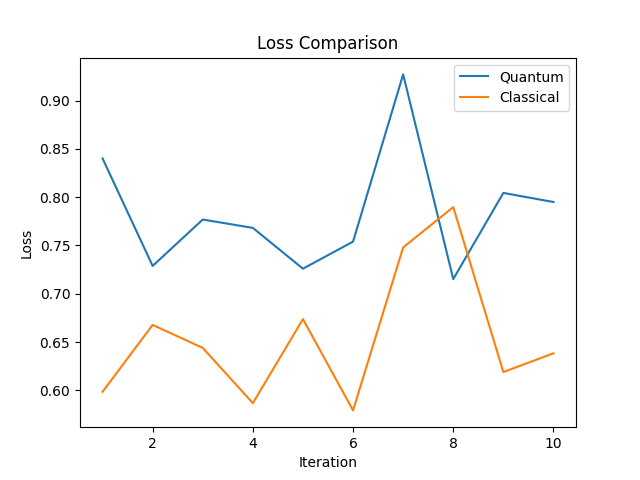

Loss Plot

The average loss for the classical model was 0.654, whereas the loss for the quantum/hybrid model was 0.783.

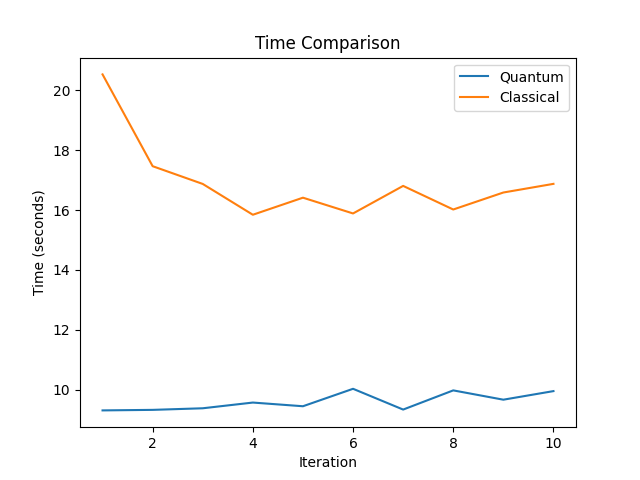

Training Time Plot

The average training time for the classical model was 16.93 seconds, whereas the training time for the quantum/hybrid model was 9.50 seconds.

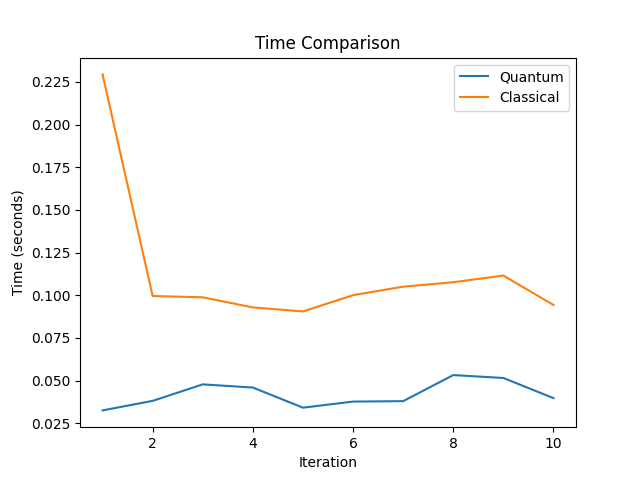

Test Time Plot

The average testing time for the classical model was 0.113 seconds, whereas the testing time for the quantum/hybrid model was 0.042 seconds.
